Ceiling Hydronic Terminal Unit
PS-CL ceiling chilled water cassette units, thanks to their modern design, setting flexibility, easy maintenance and maximum silencerepresent the result of accurate researches in order to achieve an innovative product, perfect for every surrounding and interior design.
They respond to the multiple aesthetic and functional needs. The dimensions fit in the false-ceiling panels modularity. There are many versions available: with electronically commutated EC motor, with ABS plastic panel, metal panel with Coanda effect, panels with different RAL colours, version with 4-rows coil that allows to reach much more efficiency by increasing the capacity up to 20% more.
We continue with the recent higher versions mod.PS-CLH projected in such a way as to allow condensation to drain naturally, by avoiding the installation of a condensate pump, the new silenced version mod. PS-CLES with installation of a special low-speed motor that allows to significantly reduce the noise levels, the PS-CLB version suitable for installations over high ceiling or in large environments such as lobbies in the hotels, shopping mall galleries, gyms, airports and these units thanks to a particular panel configuration can guarantee high aeraulic performance while maintaining excellent air diffusion.
To conclude, we are proud to introduce the latest generation of hydronic cassette unit with sanitizing device and the hygienic version ideal for hospital environments, chemical and analysis laboratories which has an higher chassis completely made of stainless steel and includes an anti-allergic insulation and a cataphoresis-treated heat exchanger. Available range: 2-pipes and 4-pipes system starting from a cooling capacity from 2.39 kW up to 13.49 kW.

PS-CL/CLE
Single cassette unit version with ABS plastic panel

PS-CL/CLE
Double cassette unit version with ABS plastic panel

PS-CLM-CLEM
Single cassette unit version with metal panel

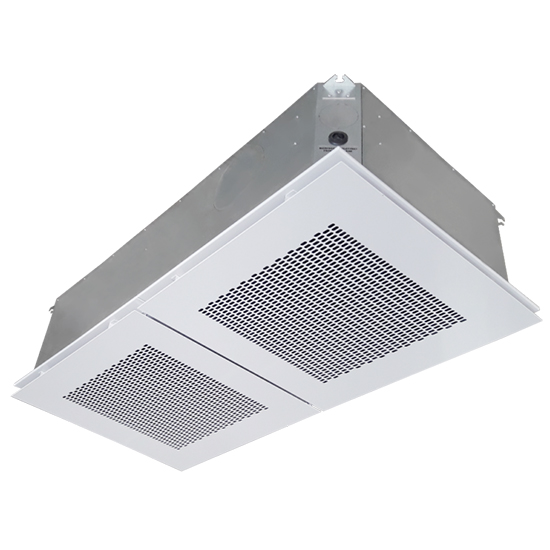

PS-CLM-CLEM
Double cassette unit version with metal panel

PS-CLH-CLEH
Single cassette unit with higher frame without pump

PS-CLH-CLEH
Double cassette unit version with metal panel

PS-CLES
Silenced version for single and double cassette unit

PS-CL-CLE 4 RANGHI
Single cassette unit with a 4 rows heat exchanger

PS-CL-CLE 4 RANGHI
Double cassette unit with a 4 rows heat exchanger

PS-CL-CLE
Version with a sanification device based on the NTP technology and installed on single or double cassette units

KIT.PLA
Example of device installation on a single cassette unit

KIT.SLC
Optional fitted device for a supersilenced version

PS-CLC-CLEC
Version for external installation (no false ceiling)
for single and double cassette unit
* Possibility to paint the frame with different colors of your choice

PS-CLB-CLEB
Version for installation at high ceilings for single and double cassette unit
